Техническая информация:

Производитель: Radix

Артикул производителя: TU18AT09

Подробное описание:  Скачать

TITAN S 200

STAINLESS STEEL REINFORCED TRANSFER CAR CABLE

RATINGS/APPROVALS:

200°C – 600 Volts

RoHS Compliant

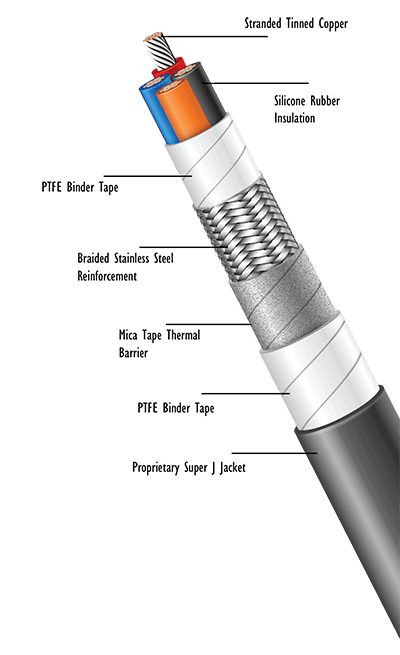

CONSTRUCTION:

Conductors

22 AWG – 2 AWG

Annealed Tinned Copper

Insulating System

Extruded Silicone Rubber

Available in colors

Binder Tapes

PTFE Fluoropolymer Tape, two layers

Inner Reinforcement

Inner reinforcement of Stainless Steel Braid

Overall Tapes

Flame and heat-resistant Mica Tape

Outer Covering

Proprietary Super J Extruded Silicone Rubber

CHARACTERISTICS:

Proprietary Super J jacket provides:

Longer cable life through molten steel wicking away surface

Superior abrasive and cut-thru resistance

Superior flexibility

LSZH: Low Smoke, Zero Halogen

PTFE Flouropolymer tape provides additional moisture resistance in wet/humid environments

Silicone formulations suitable for UV, ozone, moisture exposure.

Suitable for applications from 200°C continuous to -60°C.

Not recommended for outdoor use.

APPLICATIONS:

Titan S is constructed for use in high temperature applications as a multiple conductor control/power cable where resistance to abrasion, moisture, hot material spills, and mechanical abuse are desired. This cable is typically used in steel plants for teeming ladle transfer car applications. Flame and heat-resistant reinforced Mica Tape and Super J jacketing extends cable life over other products.
