Техническое описание:

Производитель: Habia

Артикул производителя: GG18GP03A

Подробное описание:  Скачать

PFA/PFA

HIGH-TEMPERATURE CABLE

RATINGS/APPROVALS:

250°C – 600 Volts

Passes the IEEE-383 Vertical Cable Tray Flame Test

Passes UL VW-1 Flame Test

RoHS Compliant

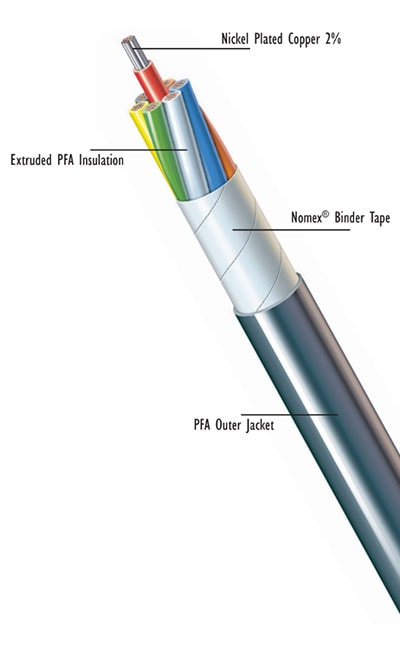

CONSTRUCTION:

Conductors:

22 AWG – 2 AWG

Nickel Plated Copper 2%

Insulating System:

Composite extruded perfluoroalkoxy (PFA) fluoropolymer insulation.

K-2 color code. (Unless specified)

Overall Binder Tapes:

Nomex®

Outer Covering:

Extruded perfluoroalkoxy (PFA) fluoropolymer outer jacket.

Standard Color:

Black (Colors available)

CHARACTERISTICS:

PFA leads have outstanding chemical, fluid, age, and ozone resistance.

Fillers, where needed, are made with flame-impervious fibers with moisture repellent finish.

Cable utilizes Radix “Torque Free” design. This eliminates memory found in traditional right hand or left hand twisted cables.

Small diameter.

APPLICATIONS:

Multiple conductor cables insulated and jacket with PFA Teflon® are widely used where small O.D. is required in industrial high temperature applications where resistance to abrasion and mechanical abuse coupled with moisture or fluid resistance are desired. This wire is widely used in steel and glass plants, as well as high temperature locations near boilers, steam lines and in chemical processing plants. Use above or below grade in raceway, tray, or conduit.
