Техническая информация:

Производитель: Radix

Артикул производителя: DAT22P007

Подробное описание:  Скачать

TGGT 250

RATINGS/APPROVALS:

250°C – 300 Volts – UL Style 5257 / CSA AWM I A/B FT1

250°C – 600 Volts – UL Style 5251/5256 / CSA AWM I A/B FT1

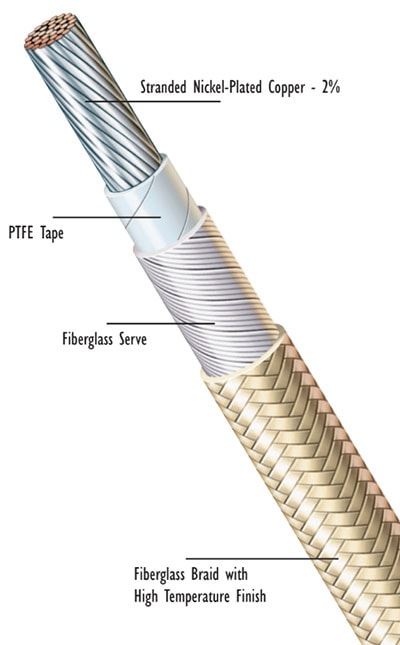

CONSTRUCTION:

Conductors

24 AWG – 10 AWG (300V)

24 AWG – 4/0 AWG (600V)

Stranded nickel-plated copper – 2%

(Other conductor materials available)

Insulating System

PTFE Tape with glass serve

Outer Covering

Braided fiberglass with a high temperature finish

Standard Color Coding

Natural and Solid Colors

Colored Tracers

CHARACTERISTICS:

Excellent cut and strip characteristics making it ideal for high volume

manufacturing and assembly

Tough treated outer glass braid and fiberglass servings permit the product

to withstand repeated flexing and severe mechanical abuse

Moisture resistant

Resists pushback and braid fray

Flexible
