VW-1 DURABLEND® 150

HIGH-TEMPERATURE LEAD WIRE.

RATINGS/APPROVALS:

150°C – 600 Volts – UL Style 3771 / CSA AWM I A/B FT1/FT2

UL VW-1 Flame Rated

RoHS Compliant

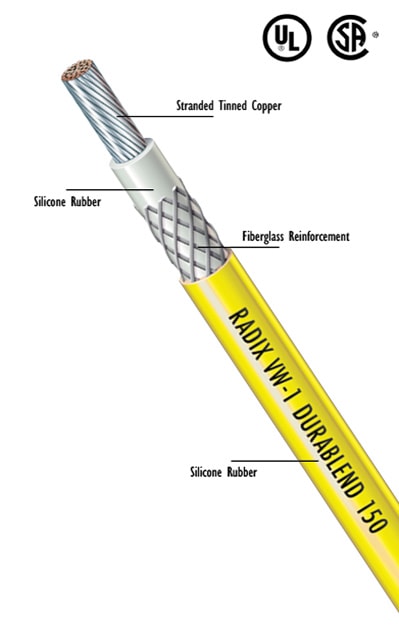

CONSTRUCTION:

Conductors

22 AWG – 6 AWG

Stranded tinned copper

(Other conductor materials available)

Insulating System

Composite Extruded Silicone Rubber with intermediate fiberglass reinforcement

Standard Color Coding

Available in Colors or Striped Combinations

CHARACTERISTICS:

Outperforms Braided Silicone products:

Smaller diameter, lighter weight, tighter bend radius

Eliminates braid fraying, flowering and shrink back

Virtually eliminates skin irritation

Significantly reduces airborne fiberglass contaminates traditionally found in high volume processing

Superior flexibility

Color stable at elevated temperatures

LSZH: Low Smoke Zero Halogen

Silicone formulations suitable for UV, ozone or moisture exposure

Not suited for liquid immersed applications

Suitable for applications to -60°C

Recommended replacement for glass braided silicone
