Техническая информация
Производитель: Radix
Артикул производителя: EDA18P019
Подробное описание: Скачать
MCS FURNACE CABLE
HIGH-TEMPERATURE LEAD WIRE
RATINGS/APPROVALS:
700°C – 600 Volt (Optional SS Braid)
1000°C – 300 Volt
Passes the IEEE-383 (modified) 210,000 BTU/hr Vertical Cable Tray Flame Test
Passes UL VW-1 Vertical Flame Test
Passes CSA FT1 Vertical Flame Test
RoHS Compliant

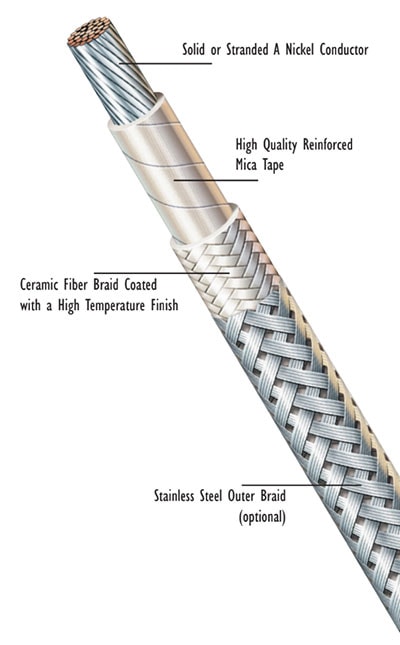

CONSTRUCTION:
Conductors
18 AWG – 8 AWG
Solid or Stranded A Nickel
Insulating System
High quality reinforced mica tape
Conductor Covering
Ceramic fiber braid coated with a high temperature finish
(Optional) Outer Braid
Stainless steel (not recommended for applications exceeding 700°C)
CHARACTERISTICS:
Superior high temperature and oxidation resistance in normal temperatures to 1000 ̊C
Fire resistant.
Very low smoke emission when burned at rated temperature.
Resistant to many chemicals.
Maintains circuit integrity even when exposed to conditions of high ambient temperature and flame.
Optional stainless steel braid provides mechanical protection.
If wire is subjected to very rapid rise in temperature, the binder
in the construction can ignite but will quickly extinguish. The resulting white ash is non-conductive.
APPLICATIONS:
For use in non-flexing applications
Wiring for ovens, kilns, and furnaces
Where the normal installation environment includes continuous operating temperatures up to 1000 ̊C and intermittent temperature approaching 1200 ̊C
Not recommended for outdoor use
