KK16AT03A-0000-A5K20

Техническая информация:

Производитель: Radix

Артикул производителя: KK16AT03A-0000-A5K20

Подробное описание:  Скачать

UL SILICONE JACKETED

HIGH-TEMPERATURE CABLES

RATINGS/APPROVALS:

SILICONE JACKETED CABLE:

150°C / 200°C – 600 Volts – UL Style 4389 / CSA AWM I A/B FT2

HI-LITE CABLE:

150°C – 300 Volts – UL Style 3522

200°C – 300 Volts – UL Style 4291 / CSA AWM I/II A/B FT2

PENDANT CABLE:

150°C – 300 Volts – UL Style 4403

200°C – 600 Volts – UL Style 4452

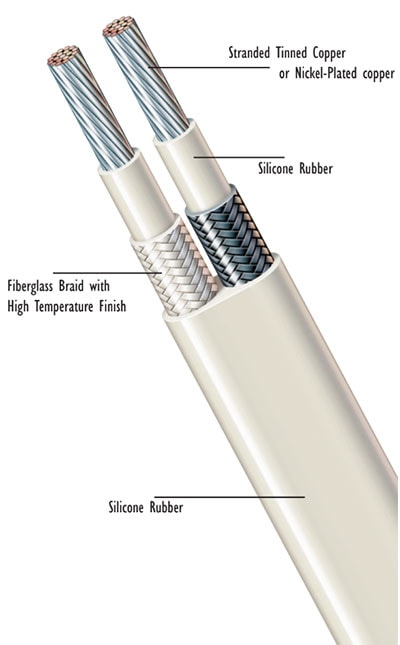

CONSTRUCTION:

SILICONE JACKETED CABLE:

Stranded tinned copper (2 to 61 conductors) with braided silicone rubber insulation (braidless silicone rubber or Teflon® also available UL only) and extruded silicone rubber jacket.

HI-LITE CABLE:

Stranded tinned copper (2 conductors 16 or 18 AWG) with braided silicone rubber insulation and extruded silicone rubber jacket. Options for UL 4291:

Twisted Kevlar, Aramid or polyester strength member laid parallel

Insulated or uninsulated ground lead

PENDANT CABLE:

Stranded tinned copper (2 conductors 16 or 18 AWG) with braided silicone rubber insulation and extruded silicone rubber jacket. Twisted Kevlar, Aramid or polyester strength member required. Optional Insulated or uninsulated ground lead.

CHARACTERISTICS:

Silicone formulations suitable for UV, ozone, moisture exposure

Not suited for immersed applications

Suitable for applications to -60°C

Silicone Rubber in extreme environments, exceeding 200°C, leaves a non-conductive ash and retains excellent insulation properties

Flexible
