Производитель: Habia

Артикул производителя: DGT22C007

Подробное описание:  Скачать

TEMPERGARD 2000 MC

HIGH-TEMPERATURE CABLE

RATINGS/APPROVALS:

450°C – 600 Volts – continuous temperature rating under normal service conditions

538°C – 600 Volts – peak temperature rating for intermittent periods

Passes NEMA WC 3 Flame Propagation Test

Passes IEEE-383 (modified) 210,000 BTU/hr Vertical Cable Tray Flame Test

Maintains circuit integrity for a minimum of 2.5 hour under ICEA T-29-520 210,000 BTU/hr Vertical Flame Test

Passes ICEA T-27-581 Water Absorption Test

RoHS Compliant

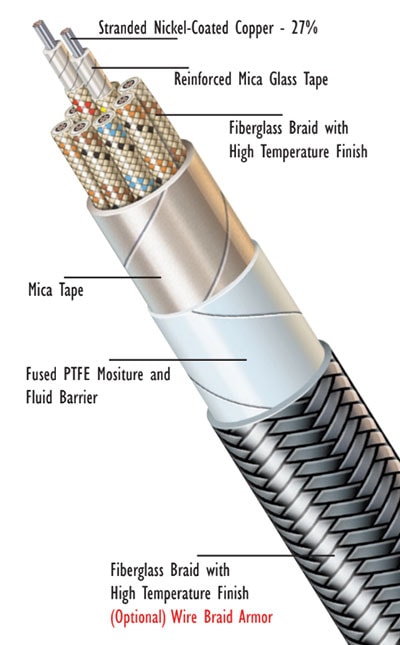

CONSTRUCTION:

Conductors

22 AWG – 2 AWG

Flexible stranded nickel-coated copper-27%

Insulating System

Reinforced mica tape with fiberglass braid cover over each insulated conductor.

High temperature tracers are woven into the braid for K-4 color coding. (Unless specified)

Overall Binder Tapes

Flame and heat-resistant reinforced mica tape with fused PTFE fluoropolymer tape overall.

Outer Covering

Braided fiberglass with high-temperature finish. Optional wire braid of stainless steel, nickel plated copper, other suitable material.

Standard Color

Black (Colors available)

CHARACTERISTICS:

Moisture, oil, fluid and abrasion resistant.

Fillers, where needed, are made with flame-impervious fibers with moisture-repellent finish.

Cable utilizes Radix “Torque Free” design. This eliminates memoryfound in traditional right-hand or left-hand twisted cables.

Binder tapes provide heat and moisture resistance.

Not recommended for outdoor use.

APPLICATIONS:

For use in circuits where the preservation of circuit integrity under abusive, high-temperature environments and resistance to abrasion, flame, oil, and other fluids is desired. Used in iron, steel, paper, and glass plants.
