Техническая информация:

Производитель: Habia

Артикул производителя: NMA20P007

Подробное описание:  Скачать

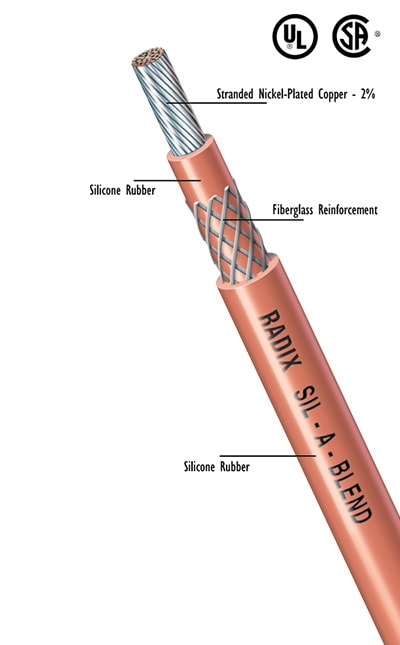

SIL-A-BLEND® 250

HIGH-TEMPERATURE LEAD WIRE

RATINGS/APPROVALS:

250°C – 600 Volts – UL Style 3637 / CSA AWM I A/B FT2

RoHS Compliant

CONSTRUCTION:

Conductors

20 AWG – 2 AWG

Stranded nickel-plated copper – 2%

(Other conductor materials available)

Insulating System

Composite Extruded Silicone Rubber with intermediate fiberglass reinforcement

Separator tape between conductor and silicone on select sizes (Not shown in illustration)

Standard Color Coding

Iron Oxide Red with Colored Markings

Consult factory for other color options.

CHARACTERISTICS:

Outperforms Braided Silicone products

Eliminates braid fraying, flowering, and shrink back

Virtually eliminates skin irritation

Significantly reduces airborne fiberglass contaminants traditionally found in high volume processing

Superior flexibility

Color stable at elevated temperatures

Low smoke

Silicone formulations suitable for UV, ozone, moisture exposure

Not suited for immersed applications

Suitable for applications to -60°C
