Техническое описание:

Производитель: Habia

Артикул производителя: DGT22C007

Подробное описание:  Скачать

DURAFLEX® 450

HIGH-TEMPERATURE WIRE

RATINGS/APPROVALS:

450°C – 300 Volts – UL 5334 / 5128 / CSA AWM I A/B FT1

450°C – 600 Volts – UL 5335 / 5107 / CSA AWM I A/B FT1

VW-1 Flame Rated

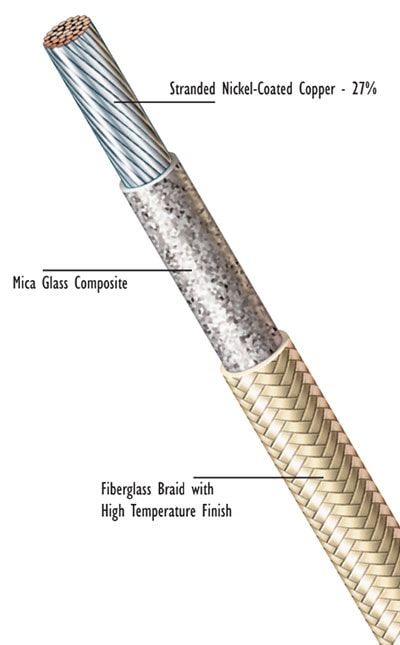

CONSTRUCTION:

Conductors

24 AWG – 14 AWG (300 Volts)

22 AWG – 8 AWG (600 Volts)

Stranded nickel-coated copper – 27%

(Other conductor materials available)

Insulating System

Mica glass composite

Outer Covering

Fiberglass braid with high temperature finish

Standard Color Coding

Natural and Solid Colors

Colored Tracers

CHARACTERISTICS:

Outperforms UL 5128/5107 MGT products:

Unique insulation system offers outstanding heat-aged flexibility for longer service life.

Passes UL 2X mandrel test after heat aging (UL 5128/5107 is 3X mandrel).

Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.

Provides dimensional consistency and uniformity.

Resists braid pushback.

Withstands mechanical abuse.
