Техническая информация:

Производитель: Radix

Артикул производителя: KL24AP30A-D01

Подробное описание:  Скачать

SRS-SUPER J 200

HIGH-TEMPERATURE CABLE

RATINGS/APPROVALS:

200°C – 600 Volts

Passes UL4389 Cable Flame Test

RoHS Compliant

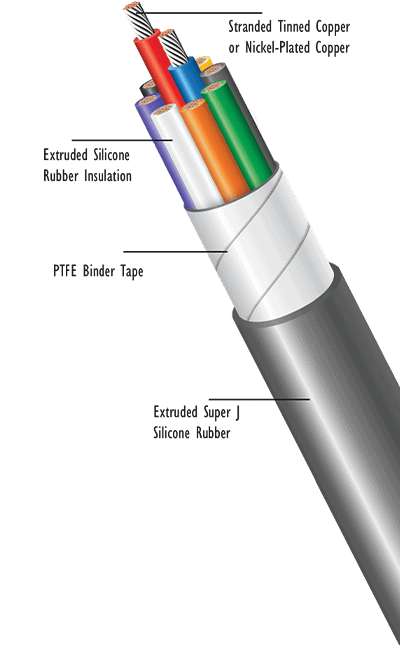

CONSTRUCTION:

Conductors

Tinned copper 18 – 4 AWG

Nickel Plated Copper 2% 24-20 AWG

Insulating System

Extruded Silicone Rubber

Overall Binder Tapes

PTFE Flouropolymer Tape

Outer Covering

Extruded Super J silicone rubber

Standard Color Coding

Gray

CHARACTERISTICS:

Proprietary Super J jacket provides longer cable life through:

Flexible, smooth surface that wicks away splashed materials

Superior abrasion and cut-through resistance

LSZH: Low Smoke, Zero Halogen

Silicone formulations suitable for UV, ozone, and moisture exposure.

Fillers, where needed, are made with flame impervious fibers with moisture repellent finish.

Cable utilizes Radix “Torque Free” design. This eliminates memory found in traditional right hand or left hand twisted cables.

Suitable for applications from -60°C to 200°C.

Not recommended for outdoor use.

APPLICATIONS:

SRS-Super J multi-conductor cables are designed for use in high temperature applications as a multiple conductor power and control cable where flexibility and resistance to heat and flame are desired. This cable can be used in robotic applications, as well as a variety of industrial applications in steel and glass plants and power generating stations.
