Техническая информация:

Производитель: Radix

Артикул производителя: KJ18AT03A

Подробное описание:  Скачать

SRG-S

HIGH-TEMPERATURE CABLE

RATINGS/APPROVALS:

200°C – 600 Volts

Passes the IEEE-383 Vertical Cable Tray Flame Test

Passes NEMA WC 3 Flame Propagation Test

RoHS Compliant

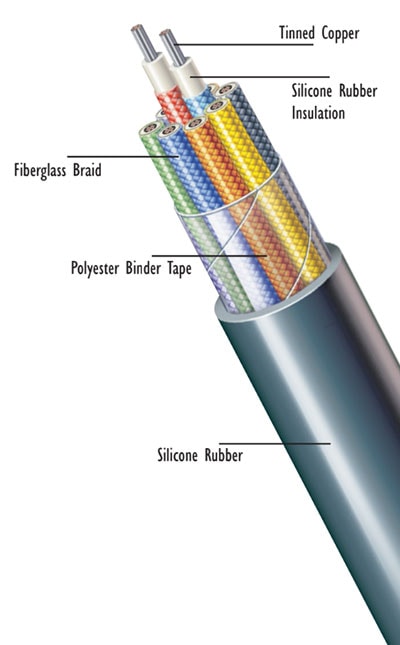

CONSTRUCTION:

Conductors:

22 AWG – 2 AWG

Annealed tinned copper

Insulating System:

Extruded silicone rubber with fiberglass braid cover over each insulated conductor. Braid treated with a moisture, heat and flame resistant finish for K-2 color coding (Unless specified) and abrasion resistance.

Overall Binder Tapes:

Polyester

Outer Covering:

Extruded silicone rubber.(Optional) wire braid armor of stainless steel or other suitable material.

Standard Color:

Black (Colors Available)

CHARACTERISTICS:

Silicone formulations suitable for UV, ozone, moisture exposure.

Fillers, where needed, are made with flame impervious fibers with moisture repellent finish.

Cable utilizes Radix “Torque Free” design. This eliminates memory found in traditional right hand or left hand twisted cables.

Binder tape is non-hydroscopic, non-wicking polyester.

Suitable for applications to -60°C.

Not recommended for outdoor use.

APPLICATIONS:

SRG-S is constructed for use in high temperature applications as a multiple conductor control cable where flexibility and resistance to heat and flame are desired. This wire is used in robotic applications, as well as high temperature locations such as steel and glass plants and in power generating stations.
