Техническая информация:

Производитель: Radix

Артикул производителя: NT18AT03A

Подробное описание:  Скачать

SAB-S

HIGH-TEMPERATURE CABLE

RATINGS/APPROVALS:

200°C – 600 Volts

Passes the IEEE-383 Vertical Cable Tray Flame Test

Passes NEMA WC 3 Flame Propagation Test

RoHS Compliant

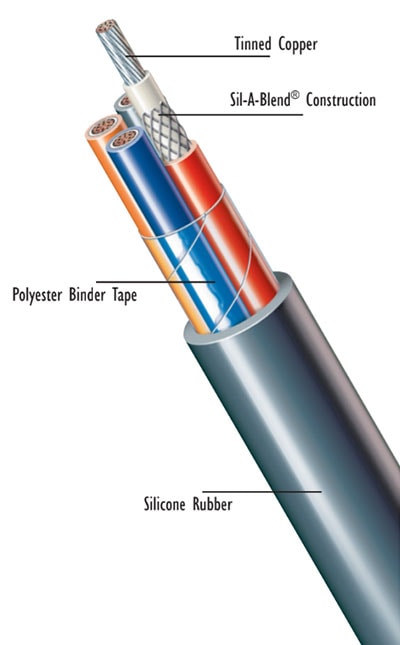

CONSTRUCTION:

Conductors:

22 AWG – 2 AWG

Annealed tinned copper

Insulating System:

Composite extruded silicone rubber with intermediate fiberglass reinforcement (Sil-A-Blend®) K-2 color code. (Unless specified)

Overall Binder Tapes:

Polyester

Outer Covering:

Extruded Silicone Rubber(Optional: Aluminum Polyester Tape Shield)

Standard Color:

Black (Colors available)

CHARACTERISTICS:

Silicone formulations suitable for UV, ozone, moisture exposure.

Fillers, where needed, are made with flame-impervious fibers with moisture-repellent finish.

Cable utilizes Radix “Torque Free” design. This eliminates memory found in traditional right hand or left hand twisted cables.

Binder tape is non-hydroscopic, non-wicking polyester.

Aramid K-fiber provides superior cut through and abrasion resistance..

Suitable for applications to -60°C.

Not recommended for outdoor use.

APPLICATIONS:

SAB-K is constructed for use in high temperature applications as a more flexible, multiple conductor control cable where resistance to abrasion and mechanical abuse are desired. This cable is used in steel and glass plants, as well as high temperature locations near boilers, steam lines and chemical processing plants. Use above grade in raceway, tray, or conduit.
