KS18GT03S

Техническая информация:

Производитель: Radix

Артикул производителя: KS18GT03S

Подробное описание:  Скачать



SKS SOAKING PIT

HIGH-TEMPERATURE CABLE

RATINGS/APPROVALS:

200°C – 600 Volts

Passes the IEEE-383 Vertical Cable Tray Flame Test

Passes NEMA WC 3 Flame Propagation Test

RoHS Compliant

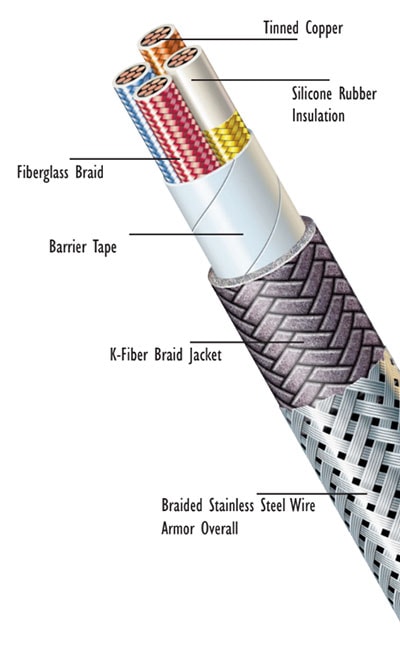

CONSTRUCTION:

Conductors:

22 AWG – 2 AWG

Annealed tinned copper

Insulating System:

Extruded silicone rubber with fiberglass braid cover over each insulated conductor. K-2 color code. (Unless specified)

Barrier Tape:

Flame Retardant Thermal barrier Tape.

Inner Covering:

Inner braid Jacket of aramid K-fibers with moisture, flame and heat resistant finish.

Outer Covering:

Braided stainless steel wire armor overall.

CHARACTERISTICS:

Silicone formulations suitable for UV, ozone, moisture exposure.

Cable utilizes Radix “Torque Free” design. This eliminates memory found in traditional right hand or left hand twisted cables.

Binder tape provides moisture resistance.

Aramid K-fiber braid and stainless steel jacket provide maximum ruggedness.

Suitable for applications to -60°C.

Not recommended for outdoor use.

APPLICATIONS:



SKS is constructed for use in high temperature applications as a multiple conductor power and control cable where resistance to abrasion, moisture, hot material spills and mechanical abuse are desired. This cable is widely used in steel plants, as soaking pit cable, slag and teeming ladle car cable, overhead crane cable and in glass plants.
