BR18GC03T

Техническая информация:

Производитель: Radix

Артикул производителя: BR18GC03T

Подробное описание:  Скачать

TEMPERGARD FZ-101 MC

HIGH-TEMPERATURE CABLE

RATINGS/APPROVALS:

250°C – 600 Volts – continuous temperature rating under normal service conditions

400°C – 600 Volts – temporary temperature rating for short periods

Passes IEEE-383 (modified) 210,000 BTU Vertical Cable Tray Fire Propagation Test

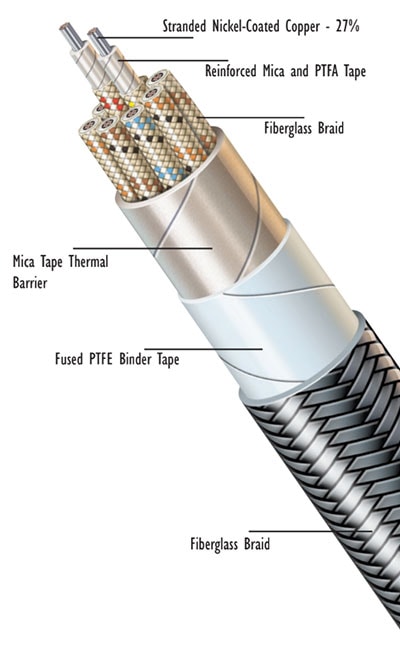

CONSTRUCTION:

Conductors

22 AWG – 2 AWG

Flexible stranded nickel-coated copper-27%

Insulating System

Reinforced mica and PTFE fluoropolymer insulation tape wrapped with fiberglass braid cover over each insulated conductor. High temperature tracers are woven into the braid for K-4 color coding. (Unless specified)

Overall Binder Tapes

Flame and heat resistant reinforced mica tape with

fused PTFE fluoropolymer tape overall.

Outer Covering

Braided fiberglass with high temperature finish.

Standard Color

Black (Colors available)

CHARACTERISTICS:

Moisture, oil, fluid and abrasion resistant.

Fillers, where needed, are made with flame impervious fibers with moisture repellent finish.

Cable utilizes Radix “Torque Free” design. This eliminates memory found in traditional right hand or left hand twisted cables.

Binder tapes provide heat and moisture resistance.

Not recommended for outdoor use.

APPLICATIONS:

For use in circuits where the preservation of circuit integrity under abusive, high temperature environments is required. Used in iron, steel, paper, and glass plants.
