Техническая информация:

Производитель: Radix

Артикул производителя: BTC18N016-Z01

Подробное описание:  Скачать

MCS FURNACE CABLE

HIGH-TEMPERATURE LEAD WIRE

RATINGS/APPROVALS:

700°C – 600 Volt (Optional SS Braid)

1000°C – 300 Volt

Passes the IEEE-383 (modified) 210,000 BTU/hr Vertical Cable Tray Flame Test

Passes UL VW-1 Vertical Flame Test

Passes CSA FT1 Vertical Flame Test

RoHS Compliant

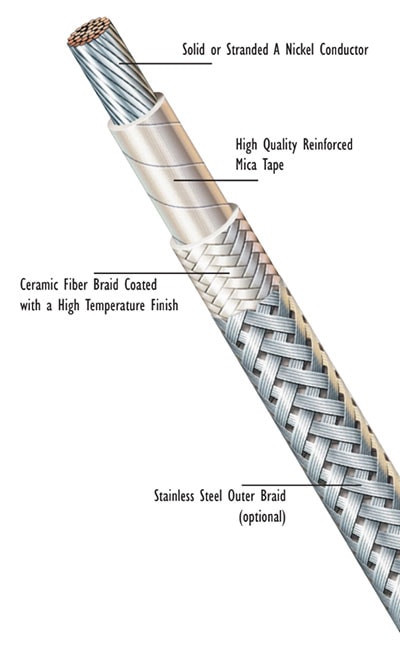

CONSTRUCTION:

Conductors

18 AWG – 8 AWG

Solid or Stranded A Nickel

Insulating System

High quality reinforced mica tape

Conductor Covering

Ceramic fiber braid coated with a high temperature finish

(Optional) Outer Braid

Stainless steel (not recommended for applications exceeding 700°C)

CHARACTERISTICS:

Superior high temperature and oxidation resistance in normal temperatures to 1000 ̊C

Fire resistant.

Very low smoke emission when burned at rated temperature.

Resistant to many chemicals.

Maintains circuit integrity even when exposed to conditions of high ambient temperature and flame.

Optional stainless steel braid provides mechanical protection.

If wire is subjected to very rapid rise in temperature, the binder

in the construction can ignite but will quickly extinguish. The resulting white ash is non-conductive.

APPLICATIONS:

For use in non-flexing applications

Wiring for ovens, kilns, and furnaces

Where the normal installation environment includes continuous operating temperatures up to 1000 ̊C and intermittent temperature approaching 1200 ̊C

Not recommended for outdoor use
