Техническая информация:

Производитель: Radix

Артикул производителя: EBF20P007

Подробное описание:  Скачать

BRAIDED SILICONE HIGH VOLT 200/230

HIGH-VOLTAGE LEAD WIRE

RATINGS/APPROVALS:

200°C – 10 KV – UL Style 3304

230°C – 10 KV – UL Style 3404

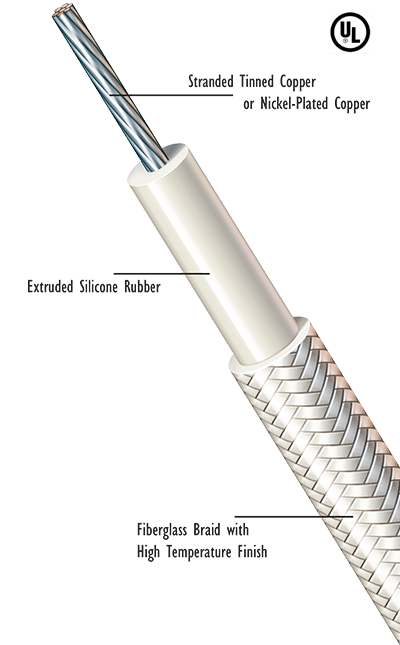

CONSTRUCTION:

Conductors

22 AWG – 12 AWG (10kV)

Stranded tinned copper or nickel-plated copper

(Other conductor materials available)

Insulating System

Extruded Silicone Rubber

Outer Covering

Braided Fiberglass with a High Temperature Finish

Standard Color Coding

Available in Colors Striped Combinations

CHARACTERISTICS:

Silicone formulations suitable for UV, ozone, moisture exposure

Not suited for immersed applications

Suitable for applications to -60°C

Note: Silicone Rubber when exposed to extreme environments exceeding the rated temperature may leave a non-conductive ash yet retains excellent insulation properties.
