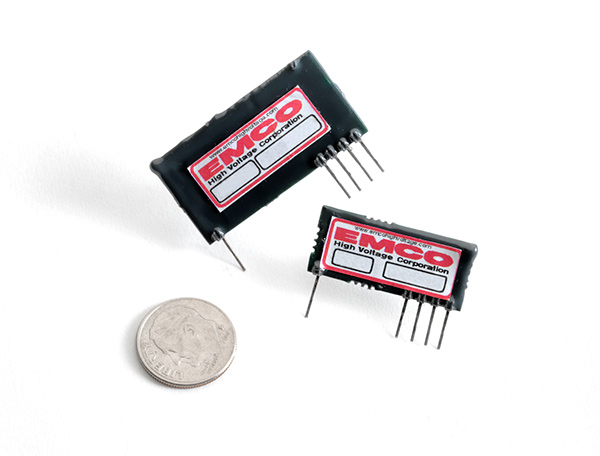

SIP SERIES

Regulated, Low-Ripple High Voltage DC to DC Converters

90V at 0.1W and 100V at 1W

Ideal for APD biasing and MEMS driver applications, the SIP Series provides high performance in an ultra-thin, miniature, single in-line package. Designed for low-cost, high-quantity applications, these high voltage DC to DC converters deliver high stability with very low ripple.

The output voltage is programmable via a 0 to 5 volt analog voltage. The output voltage is inversely related to the programming voltage; i.e., applying 5 volts to the programming sets the output voltage to the minimum level. Conversely, 0 volts on the programming sets the output voltage to the maximum level.

The supply is linearly programmable through this range. An enable/disable function is included. Applying a TTL Low (open collector compatible) disables the output voltage to less than 10 volts.



APPLICATIONS

Photomultiplier Tubes

Mass Spectrometers

Avalanche Photodiode

Microchannel Plates

Piezo Materials

Igniters

Capacitor Charging



FEATURES

Low Ripple

Well Regulated

Analog Programming Voltage

Ultra-Thin: 0.16 inch (4mm)

High Performance, Low Cost

MTBF: >2.03 Million Hours per Bellcore TR-332

Packaging: Epoxy Coated



OPTIONS

RoHS Versions Available (R Suffix)



Производитель: Emco High Voltage

Паспорт изделия: Скачать (690 Кб)
