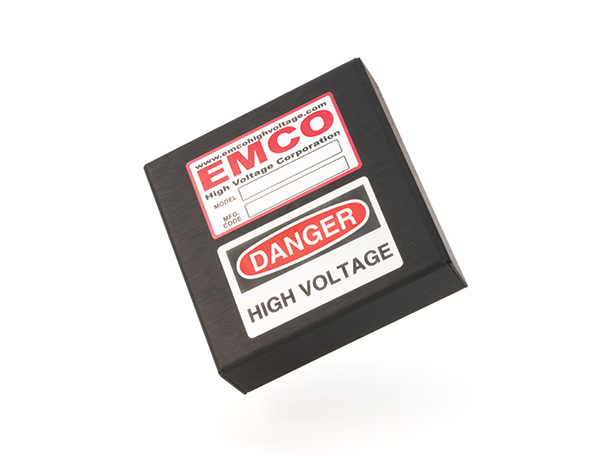

Regulated High Voltage DC to DC Converters

300V to 10kV at 15W

The H Series is a line of compact, regulated high voltage DC to DC converters featuring 15 watts of continuous output power.  This line features 0 to 100% programmability via a 0 to 5 volt DAC compatible high impedance programming input voltage. A 0 to 5 volt output voltage monitor is provided. Short circuit, arc, and reverse polarity protection are standard. Technical assistance is readily available.

APPLICATIONS

Piezo Devices

HV Op Amp Rails

Ultrasonic Transducers

Lamp Ignition and Drive

Electrophoresis

Capacitor Charging

Lasers

General Lab Use

FEATURES

0 to 100% Programmability

Output Voltage Monitor

Short Circuit Protection: Short Duration, 1 Minute Minimum

Reverse Polarity Protection

Arc Protection

Low EMI/RFI

MTBF: >790K Hours per Bellcore TR-332

Shielded Metal Case

Input/Output Filtering

OPTIONS

Mounting Holes (up to 6kV) (H Suffix)

RoHS Versions Available (R Suffix)

Epoxy: Low Outgassing (NASA Approved per ASTM E-595-93)

Производитель: Emco High Voltage

Паспорт изделия: Скачать (740 Кб)
