Isolated, Proportional DC to HV DC Converters

100V to 6kV at 1W and 1.5W

Now UL Recognized

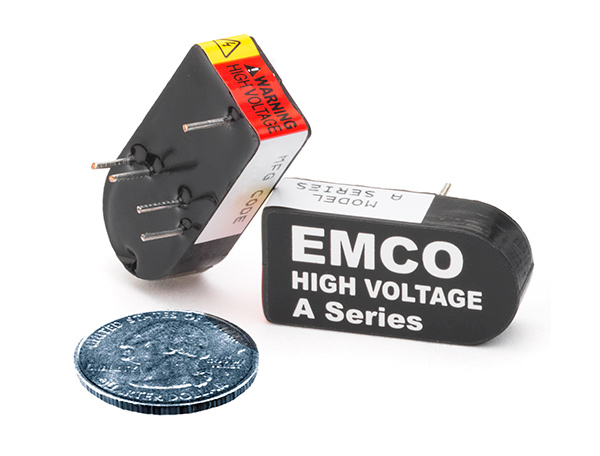

 The A Series is a new line of ultra-miniature, DC to HV DC converters that sets an industry standard in high voltage miniaturization.

This unique package occupies less than one tenth of a cubic inch of volume and features an extremely low profile of only 0.250 inch (6.35mm).

 Controllable output voltages range from 100V to 6kV. These component-sized converters are ideal for applications requiring minimal size and weight.

APPLICATIONS

Avalanche Photodiodes

Capacitor Charging

Electrophoresis

Photomultiplier Tubes

Piezo Devices

Mass Spectrometry

Sustaining Ion Pumps

FEATURES

Proportional Input/Output

Low-Noise Quasi-Sinewave Oscillator

Control Pin

Low Leakage Current

Low Input/Output Capacitance

Input to Output Galvanic Isolation

Short Circuit Protection: 1 Minute Minimum

No Minimum Load Required

Designed to Meet RoHS and REACH Directives

MTBF > 1,862,000 Hours per Bellcore TR 332

UL94V-0 Listed Proprietary Encapsulant

No External Components Required

OPTIONS

1W and 1.5W Versions Available (A/AH)

Available in Three Standard Input Voltage Ranges: 0 to 5, 12 or 24V

Polarity: Choose Positive or Negative Output (P/N)

Extended Operating Temperature (A Models / 1W) (T Suffix)

Alternate Input/Output Voltages
