AG SERIES

Isolated, Proportional DC to HV DC Converters

100V to 6kV at 1W and 1.5W

Now UL Recognized

The AG Series is a new line of ultra-miniature DC to HV DC converters that set an industry standard in high voltage miniaturization. These component-sized converters are ideal for applications requiring minimal size and weight.

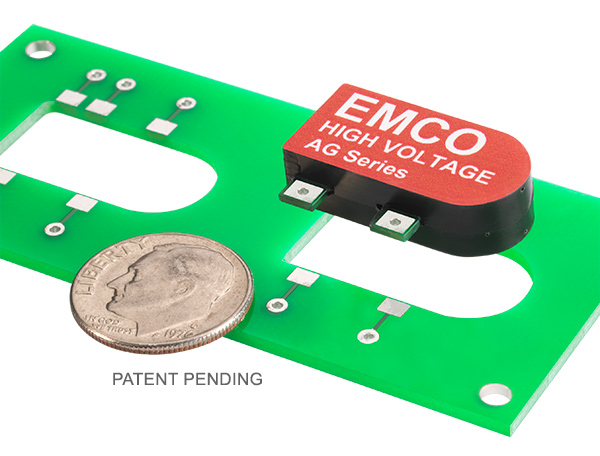

Occupying less than one tenth of a cubic inch of volume, this unique package features an extremely low profile of only 0.128 inch (3.25mm) when mounted in from the top, or 0.152 inch (3.86mm) when mounted in from the bottom of the PCB. The AG Series converter can also mount off the PCB with 0.030-inch diameter pins.

See page 9 of the AG Series data sheet for illustrations. Controllable output voltages range from 100V to 6kV. Please refer to the A Series data sheet for PCB pin mounting.



APPLICATIONS

Avalanche Photodiodes

Capacitor Charging

Electrophoresis

Photomultiplier Tubes

Piezo Devices

Mass Spectrometry

Sustaining Ion Pumps



FEATURES

Proportional Input/Output

Low-Noise Quasi-Sinewave Oscillator

Control Pin (Can Be Used for on/off Control)

Low Leakage Current

Low Input/Output Capacitance

Input to Output Galvanic Isolation

Short Circuit Protection: 1 Minute Minimum

No Minimum Load Required

Designed to Meet RoHS and REACH Directives

MTBF > 1,862,000 Hours per Bellcore TR 332

Surface-Mount Package

UL 94V-0 Listed Proprietary Encapsulant

No External Components Required



OPTIONS

1W and 1.5W Versions Available (AG/AGH)

Available in Three Standard Input Voltage Ranges: 0 to 5, 12, or 24V (up to 3kV)

Polarity: Choose Positive or Negative Output (P/N)

Extended Operating Temperature (AG Models / 1W) (T Suffix)

Alternate Input/Output Voltages
