Isolated, Proportional DC to HV DC Converters

100V to 6kV at 1.5W

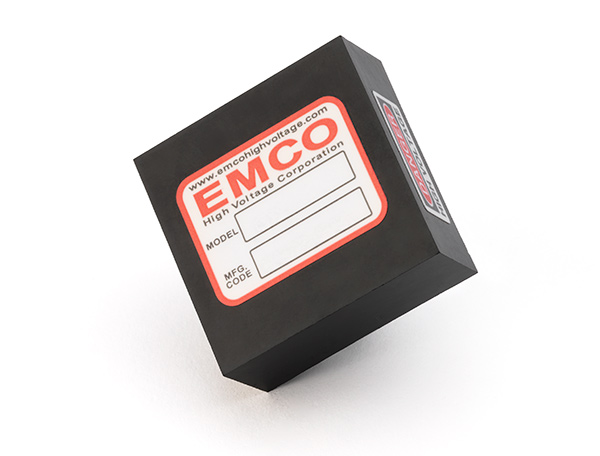

The G Series is a line of miniature, versatile, component-level building blocks that provide up to 6kV, positive or negative, in a compact PC-mount package.

The isolated output is directly proportional to the input and is linear from approximately 0.7V in. Excellent filtering techniques and a low-noise quasi-sinewave oscillator provide clean, reliable DC to HV DC conversion with low ripple and low EMI/RFI. The isolated output allows for user selectable output polarity.

An output center-tap option, when grounded, provides both positive and negative outputs from one compact, low-cost module. The pin pattern on the G Series allows for a direct drop-in replacement for many larger high voltage modules.

Positive and negative outputs are typically balanced within 20%. The GPMT model has been specifically designed for biasing PMTs.

APPLICATIONS

Capacitor Charging

Piezo Devices

Mass Spectrometry

Electrostatic Chuck

Igniter/Spark Module

Sustaining Ion Pumps

Vacuum Gauges

Photomultiplier Tubes

Lamp Ignition and Drive

FEATURES

Proportional Input/Output

Compact, PCB-Mount Package

Low Ripple, Low EMI/RFI

Proven Reliability

Short Circuit Protection

Input/Output Isolation

Low Leakage Current

Low Input/Output Coupling Capacitance

No External Components Required

No Minimum Load Required

UL94 V0 Listed Proprietary Encapsulant

MTBF: >2.29 Million Hours per Bellcore TR-332

OPTIONS

Center Tap Models Available (CT Suffix)

RoHS Version Available (R Suffix)

External Mounting Enclosure (AB Suffix)

Low Outgassing Epoxy (Consult Factory)

Alternate Input/Output Combinations

Производитель: Emco High Voltage

Паспорт изделия: Скачать (886 Кб)
