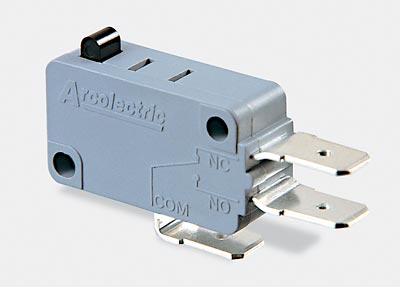

Микровыключатель Arcolectric, серия V3

Список производителей

Публикации

Arcolectric (UK)

Number Function Variant Notes
Standard
V3 CO ON-(ON) 1 Standard T85
2 High Temperature T125 Momentary 1 side
NO (ON)-OFF 1 Standard T85
2 High Temperature T125 Momentary ON
NC ON-(OFF) 1 Standard T85
2 High Temperature T125 Momentary OFF

Terminal Options
Code Size
C 6.3x0.8mm
H 4.8x0.8mm
E 4.8X0.5mm
T Solder
L RAST5 3x6.3 tabs on 5mm pitch
Lever Position
Code Comment
A Standard ratio
B High ratio
N No lever
Lever Shapes

Please see data sheet
OP. Force
Code Force
05 55gms
10 100gms
20 200gms
35 350gsm
Further Options

Options include: Gold plated Contact, lever types and terminals.
Product Code

Product Code: Terminal Option + Switch Series + Variant + Function + Lever position + Lever shape + Operating force + Other features e.g. CV311A0/35 +other features.

Информация

Производитель: Arcolectric (UK)

Артикул производителя: V3
