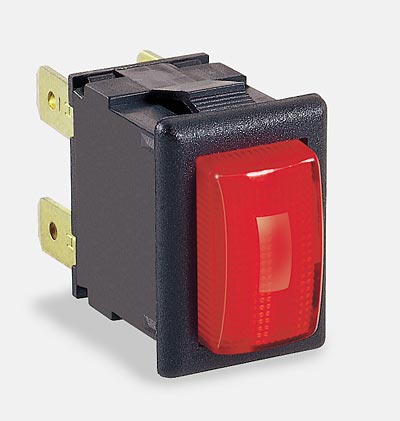

Minature push button
Ratings up to 16A, 250V ac
8A Inductive current rating
Illuminated and non illuminated
Single and double pole latching and momentary
'H' slotted for custom actuators
Industry standard panel cutout


16(4)A 250Vac T85, 1E4 (10,000 Operations)
12(2)A 250Vac T105, 1E4 (10,000 Operations)
8(8)A 250Vac T105, 5E4 (50,000 Operations)
6(6)A 250Vac T125, 5E4 (50,000 Operations)

12A 250Vac DP, 13A 250Vac SP
250Vac 1hp 125Vac 1/2hp
UL 85°C, file E45221, CSA file LR10990

RoHS Compliant



Number Function Contact Notes

8300 ON-OFF Single Pole
8301 ON-OFF Single Pole Momentary ON
8303 ON-OFF Single Pole with light
8304 ON-OFF Single Pole Momentary ON with light
8350 ON-OFF Double Pole
8351 ON-OFF Double Pole Momentary ON
8353 ON-OFF Double Pole with light
8354 ON-OFF Double Pole Momentary ON with light
8355 ON-OFF Single Pole Isolated light switched
8356 ON-OFF Single Pole Isolated light unswitched

Terminal Options
Code Size
C 6.3x0.8mm
H 4.8x0.8mm
K 2.8x0.8mm
T Solder
V Dual PCB
X PCB
Panel and Bezel Dimensions (mm)
Code Panel Cut Out Bezel
B 12.9 15.0x21.0
E 12.9 15.0x21.0
Actuator Options
Code Style
A Standard
H Slotted for custom actuator
C Square
E Radiused
F Small round
J Smooth curved
M Round D
D Large round

Further Options
Finish, Colours, Legend Printing, Special buttons and Protective Cover.

Product Code
Terminal Option + Switch Function + Actuator + Body + Further Options e.g. H835JE + further options. See datasheet for further information.

Информация

Производитель: Arcolectric (UK)

Артикул производителя: 8300
