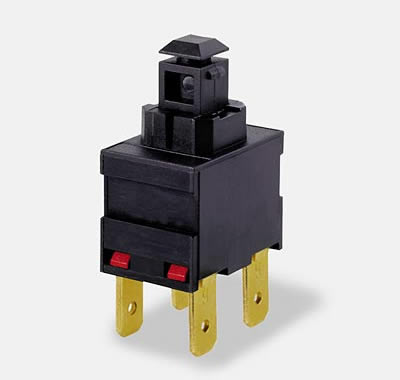

Miniature push button
Ratings up to 16A, 250V ac
Without button
Sub panel mount
8A Inductive current rating
Push on, solder or PCB terminals
Latching and momentary


Enlarge image

16(4)A 250Vac T85, 1E4 (10,000 Operations)
12(2)A 250Vac T105, 1E4 (10,000 Operations)
8(8)A 250Vac T105, 5E4 (50,000 Operations)
6(6)A 250Vac T125, 5E4 (50,000 Operations)

12A 250Vac
250Vac 1hp, 125Vac 1/2hp
UL 85°C, file E45221, CSA file LR10990

RoHS Compliant



Number Function Contact Notes
8200 ON-OFF Single Pole
8201 ON-OFF Single Pole Momentary ON
8250 ON-OFF Double Pole
8251 ON-OFF Double Pole Momentary ON

Terminal Options
Code Size
C 6.3x0.8mm
H 4.8x0.8mm
K 2.8x0.8mm
T Solder
A 4.8 x 0.8mm right angle
X PCB
V Dual Pin PCB 0.8 Sq
M As V, PCB but right angle
Body
Code Notes
A Standard Body
C As standard body but with side support peg for use with M PCB terminals
Actuator Options
Code Profile
A Standard Actuator
B Flat top actuator
C Curved top actuator

Further Options
Options include: Finish, Colours, Legend Printing, Lamp Voltage, Blanking Plate and Protective Cover.

Product Code
Product Code: Terminal Option + Switch Function + Actuator Option + Body Option + Further Options e.g. H8200AA + further options. See datasheet for further information.

Информация

Производитель: Arcolectric (UK)

Артикул производителя: 8200
