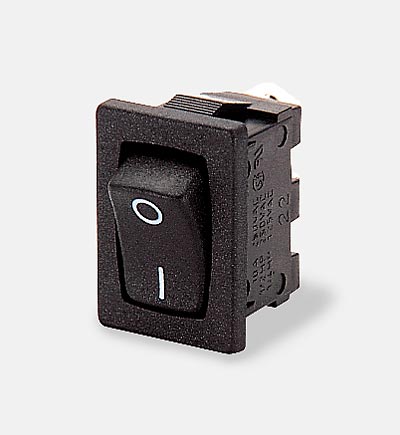

Miniature rocker switch
Ratings up to 16A 250Vac
Single & double pole
ON/OFF, C/O, biased and centre off switching
Push on, solder and PCB terminals
Illuminated and no-illuminated
Matching Indicators
Bezel size: single 21x15, double 21x24


Enlarge image

10(4)A 250Vac T90

UL CSA
UL 65°C, file E45221, CSA file LR10990

Inrush 25A to EN61058-1 & 10A 28Vdc

RoHS Compliant



Number Function Notes
8600 ON-OFF
8601 ON-OFF Momentary ON
8602 ON-OFF Momentary OFF
8610 ON-ON
8611 ON-OFF Momentary 1 side
8620 ON-OFF-ON
8630 Indicator
8650 ON-OFF
8651 ON-OFF Momentary ON
8652 ON-OFF Momentary OFF
8653 ON-OFF Lit
8660 ON-ON
8661 ON-OFF Momentary 1 side
8670 ON-OFF-ON

Terminal Options
Code Size
H 4.8x0.8mm
T 3.5x0.8mm Solder
X PCB 0.8 Sq
Y Right angle PCB
Body Options
Code Description
B Single Pole
B Double Pole with terminal barrier
BC Double Pole without terminal barrier
Rocker Options
Code Profile
V Curved (optionally lit)
D Paddle lever
F Flat indicator only

Further Options
Options include: Finish, Colours, Legend Printing, Lamp Voltage, Blanking Plate, Protective Cover and Single pole option.

Product Code
Product Code: Terminal Option + Switch Function + Rocker Option + Body Option + Further Options e.g. H8653VB + further options. See datasheet for further information.

Информация

Производитель: Arcolectric (UK)

Артикул производителя: 8600
