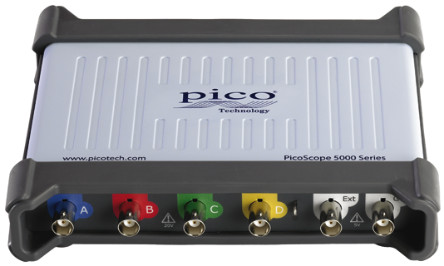

Осциллограф PICO, PicoScope 5443A
Bandwidth 100MHz
Dimensions 190 x 170 x 40mm
Display Type None
Height 40mm
Length 190mm
Maximum Operating Temperature +50°C
Maximum Time Base 1000s/div
Maximum Vertical Sensitivity 4V/div
Minimum Operating Temperature 0°C
Minimum Time Base 1ns/div
Minimum Vertical Sensitivity 2mV/div
Model Number p 5443A
Number of Channels 4
Oscilloscope Type PC Based
Power Source USB
Record Length 64MS
Rise Time 3.5ns
Sample Rate Random 1 Gsps
Series 5000
USB Interface Yes
Vertical Resolution 16 bit
Weight 0.5kg
Width 170mm

Информация

Производитель: Pico

Артикул производителя: PicoScope 5443A
