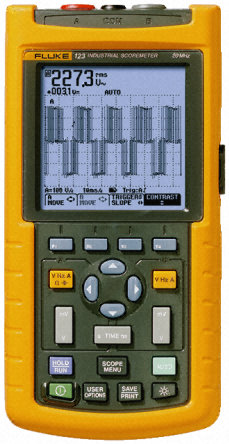

Осциллограф Fluke 123-008
Bandwidth 20MHz
Battery Life 7 h
Battery Type Rechargeable NiMH
Dimensions 232 x 115 x 50mm
Display Type Monochrome
Height 50mm
Length 232mm
Maximum Operating Temperature +50°C
Maximum Time Base 1min/div
Maximum Vertical Sensitivity 500V/div
Minimum Operating Temperature 0°C
Minimum Time Base 20ns/div
Minimum Vertical Sensitivity 5mV/div
Model Number p Fluke 123
Number of Channels 2
Oscilloscope Type Handheld
Power Source Battery, Mains
Record Length 512points/ch
Rise Time 17.5ns
RS232 Interface Yes
Safety Category CAT III 600 V
Safety Category Level CAT III, CAT lll
Safety Category Voltage 600V
Sample Rate Random 1.25 Gsps
Screen Size 10.2cm
Series 120
USB Interface Yes
Vertical Resolution 8 bit
Weight 1.2kg
Width 115mm

Информация

Производитель: Fluke

Артикул производителя: Fluke 123-008
