Модуль Tektronix, TDS3LIM
Application Modules
TDS3AAM Advanced Application Module
Advanced analysis capability by mathematical processing of live waveforms using a powerful maths equation editor
Area and Cycle Area measurements, differentiation and integration functions, measurement averaging and measurement statistics
Four selectable FFT window types (Rectangular, Hamming, Hanning & Blackman-Harris)

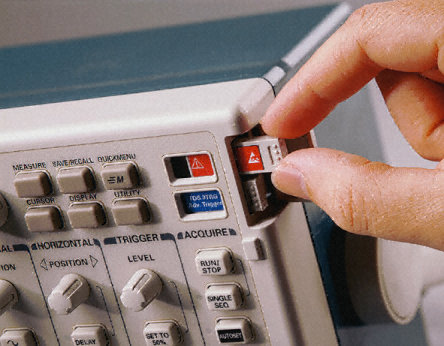

TDS3LIM Limit Test Module
Fast, accurate go/no-go verification that tested circuits are operating within intended parameters
Create up to 4 reference waveform to compare with measured waveforms
Selectable actions when waveform strays outside the reference limits
Stop acquisition; audible beep, print hardcopy; save waveform to disk
TDS3VID Extended Video Application Module
Adds line count triggering, custom video scan and field rates
Analogue HDTV triggering formats 10801, 1080p, 720p, and 480p
Vectorscope mode with built in 100% & 75% colour bars
Monochrome picture image display on screen
Readout in mV or IRE units
Includes 75Ω terminator
TDS3000B Series Accessories

Информация

Производитель: Tektronix

Артикул производителя: TDS3LIM
