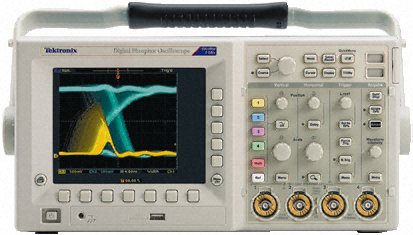

Осциллограф Tektronix, TDS3054C
Bandwidth 500MHz
Battery Life 3 h
Battery Type Rechargeable Lithium-Ion
Dimensions 375 x 149 x 176mm
Display Type Colour
Height 176mm
Length 375mm
Maximum Operating Temperature +50°C
Maximum Time Base 10s/div
Maximum Vertical Sensitivity 10V/div
Minimum Operating Temperature 0°C
Minimum Time Base 1ns/div
Minimum Vertical Sensitivity 1mV/div
Model Number p TDS3054C
Number of Channels 4
Oscilloscope Type Digital Storage
Power Source Battery, Mains
Record Length 10k points/ch
Rise Time 0.7ns
RS232 Interface Yes
Sample Rate Random 5 Gsps
Screen Size 6.5in
Series TDS3000C
USB Interface Yes
Vertical Resolution 9 bit
Weight 3.2kg
Width 149mm

Информация

Производитель: Tektronix

Артикул производителя: TDS3054C
