Series AZ16
Safety Contacts 2 N/C, 1 N/O
Connection Type M16
Holding Force 30N
Housing Material Glass Fibre Reinforced Thermoplastic
IP Rating IP67
Actuator Included Yes
Number of Actuating Directions 4

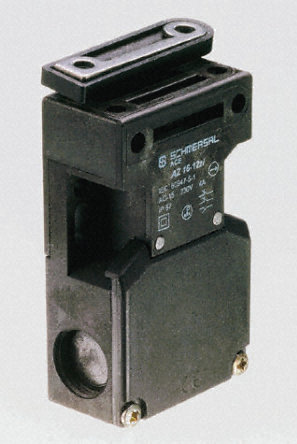

AZ16 Coded Switch, IP67

* Double insulated
3 cable entry positions
Large wiring chamber for ease of installation
Patented roller system giving resistance to contaminants
Supplied with a dedicated actuator key
Approvals

BG, UL, CSA

Standards

IEC/EN60947-5-1/DIN VDE 0660-200; EN1088, BG-GS-ET-15
Schmersal Safety Interlock Switches - AZ16

* Conforms to BS5304 and latest European Standards for machinery guarding
Operating Force: 15N (Max)
IP67
Rated operational current: 4A/230Vac (AC 15)

Информация

Производитель: Schmersal

Артикул производителя: AZ16-12ZI-B1
