Series AZ16
Safety Contacts 1 N/C, 1 N/O
Connection Type M20
Holding Force 30N
Housing Material Glass Fibre Reinforced Thermoplastic
IP Rating IP67
Actuator Included Yes
Number of Actuating Directions 4
Safety Interlock Switch, with Door Catch

* A general purpose machine guard interlock switch supplied with a ball-catch device adjustable for door holding forces up to 100N
This can be mounted in any one of 4 positions on the switch, dependent on which of the 4 possible actuating directions are chosen
Approvals

BG, UL, CSA

Standards

947-5-1/EN 60947-5-1/DIN, VDE 0660 Part 200, BG-GS-ET-15; BS5304

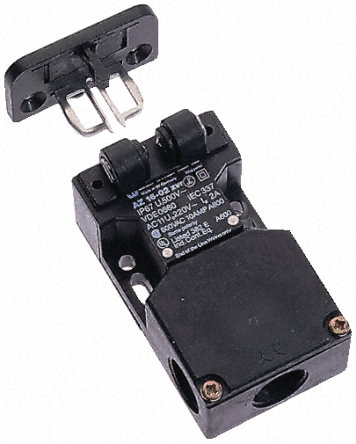

Schmersal Safety Interlock Switches - AZ16

* Conforms to BS5304 and latest European Standards for machinery guarding
Operating Force: 15N (Max)
IP67
Rated operational current: 4A/230Vac (AC 15)

Информация

Производитель: Schmersal

Артикул производителя: AZ16ZVR/BI-2053/1876
