Series AZ16
Safety Contacts 2 N/C, 1 N/O
Connection Type M20
Holding Force 30N
Housing Material Glass Fibre Reinforced Thermoplastic
IP Rating IP67
Actuator Included No
Number of Actuating Directions 3

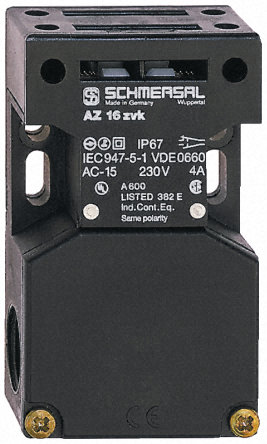

AZ16 Safety Switch with Separate Actuator

* Standard, simple safety switch with 4 entry points on the 3 sides of the housing
Not sensitive to dirty conditions by virtue of patented roller system
Multiple coding
IP67 protection

Note

Actuator must be ordered separately, see accessories

Approvals

BG, UL, CSA

Standards

IEC/EN60947-5-1, BG-GS-ET-15

Schmersal Safety Interlock Switches - AZ16

* Conforms to BS5304 and latest European Standards for machinery guarding
Operating Force: 15N (Max)
IP67
Rated operational current: 4A/230Vac (AC 15)

Информация

Производитель: Schmersal

Артикул производителя: AZ16 12ZVK-M20-2254
