Series AZ16
Safety Contacts 1 N/C, 1 N/O
Connection Type M20
Holding Force 30N
Housing Material Glass Fibre Reinforced Thermoplastic
IP Rating IP67
Actuator Included Yes
Number of Actuating Directions 4
Standard Safety Interlock Switch

* A standard, simple safety switch for machine guarding, N/C contacts are closed when shutting the guard by inserting the special actuator key into one of 4 possible entry slots on the 3 sides of the housing
The N/C contacts are disconnected with a positive mechanical linkage when the actuator key is withdrawn and positive break is obtained after a movement of only 8mm
High actuator retention force to hold guard doors closed.
Approvals

BG, UL, CSA

Standards

947-5-1/EN 60947-5-1/DIN, VDE 0660 Part 200, BG-GS-ET-15; BS5304

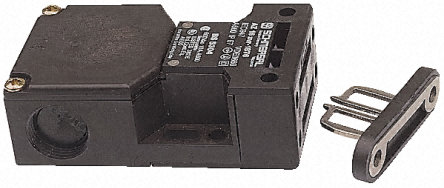

Schmersal Safety Interlock Switches - AZ16

* Conforms to BS5304 and latest European Standards for machinery guarding
Operating Force: 15N (Max)
IP67
Rated operational current: 4A/230Vac (AC 15)

Информация

Производитель: Schmersal

Артикул производителя: AZ16ZVR-1876
