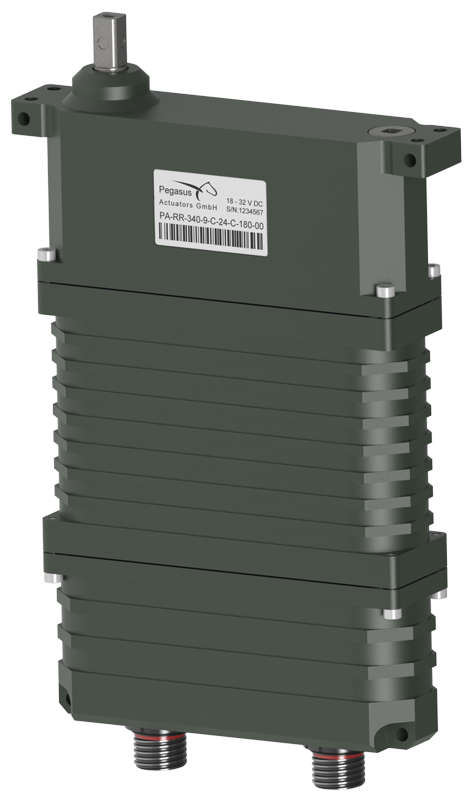

PA-RR-340-9

Информация


Производитель: Pegasus

Артикул производителя: PA-RR-340-9



Характеристики

Continuous torque: 1200 Ncm (1700 oz-in)

Max. torque: > 2100 Ncm (> 2970 oz-in)

Operating voltage: 18 - 32 V DC, typical 24-28 V DC

Travel angle: 315° (PA-ME³ / redundant contactless angle sensor).

No load speed: 230 °/sec. @ 28 V DC, 200 °/sec. @ 24 V DC

Pc-board: dual servo controller - with digital position feedback

Signal: Redundant RS485 data protocol

Motor: dual BLDC motor, Neodym magnet

Gear train: hardened steel, spur gear type, 10 ball races and roller bearings with PA-SC overload protection output shaft.

Case: aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation.

Weight: 1450 gr. (51 oz)



Подробное описание:  Скачать
