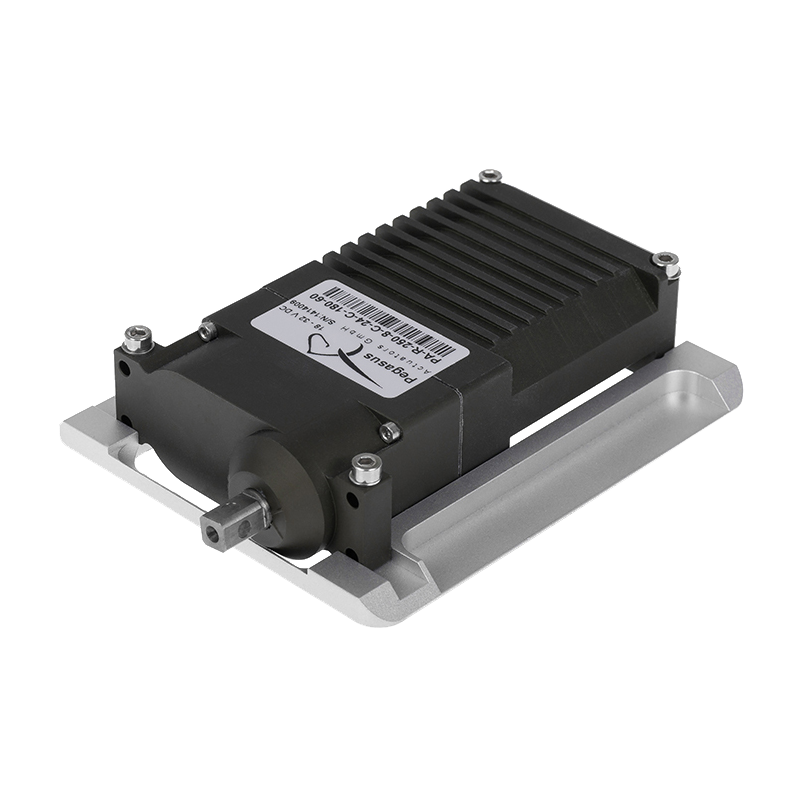

PA-R-250-8

Информация


Производитель: Pegasus

Артикул производителя: PA-R-250-8



Характеристики

Continuous torque: 300 Ncm (425 oz-in)

Max. torque: > 500 Ncm (> 710 oz-in)

Operating voltage: 12 or 24 V DC

Travel angle: ± 90° (standard PA-ME / contactless angle sensor), alternative angles on request.

No load speed: 205 °/sec

Pc-board: digital - programmable - with differential, analog sensor feedback

Signal:

PWM signal, TTL level (standard configuraton)

PWM signal, differential (RS485 transceiver) (optional)

or RS485data protocol (optional)

Motor: BLDC motor, Neodym magnet

Gear train: hardened steel, spur gear type, 6 ball races with rigid output shaft (optional with slip clutch output shaft PA-SC).

Case: aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation.

Weight: 285 gr. (10,05 oz)





Подробное описание:  Скачать
