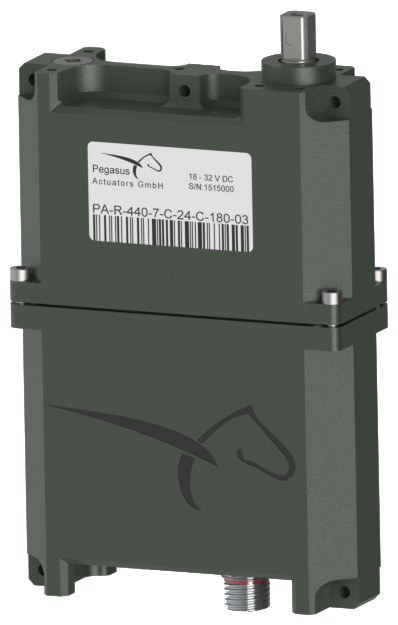

PA-R-440-7

Информация


Производитель: Pegasus

Артикул производителя: PA-R-440-7



Характеристики

Continuous torque: 20 Nm (14,8 Lb-ft)

Max. torque: > 35 Nm (> 26 Lb-ft)

Operating voltage: 18 - 32 V DC

Travel angle: ± 90° (standard PA-ME / contactless angle sensor), alternative angles on request.

No load speed: 120 °/sec @ 28 V DC, 100 °/sec. @ 24 V DC

Pc-board: digital - programmable - with differential, analog sensor feedback

Signal:

PWM signal, TTL level (standard configuraton)

PWM signal, differential (RS485 transceiver) (optional)

or RS485data protocol (optional)

Motor: BLDC motor, Neodym magnet

Gear train: hardened steel, spur gear type, 10 roller bearings with PA-SC overload protection output shaft.

Case: aluminum, water- and dust protected (IP67), with solid horizontal and vertical fixation.

Weight: 1500 gr. (3,3 lb)



Подробное описание:  Скачать
