Производитель: Pegasus

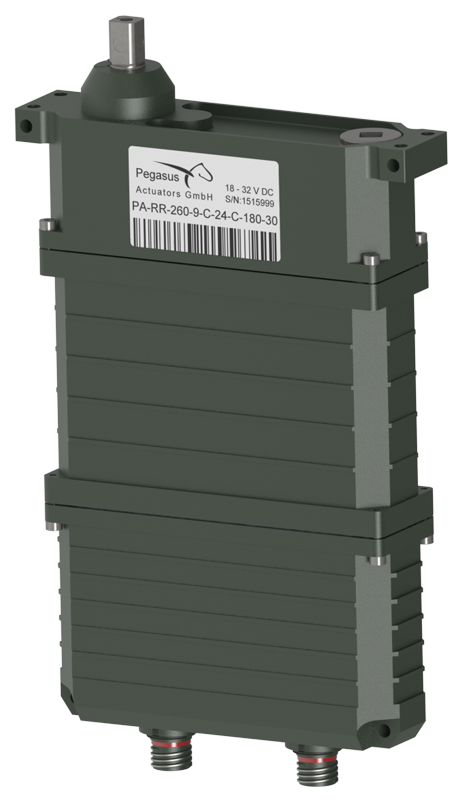

Артикул производителя: PA-RR-260-9

Характеристики

Continuous torque: 400 Ncm (560 oz-in)

Max. torque: > 700 Ncm (> 992 oz-in)

Operating voltage: 18 - 32 V DC

Travel angle: 315° (PA-ME³ / redundant contactless angle sensor).

No load speed: 170 °/sec @ 24 V DC, 210 °/sec @28 V DC

Pc-board: dual servo controller - with digital position feedback

Signal: Redundant RS485 data protocol

Motor: dual Hi-Output BLDC motor, Neodym magnet

Gear train: hardened steel, spur gear type, 8 ball races with PA-SC overload protection output shaft.

Case: aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation.

Weight: 575 gr. (20,6 oz)

Подробное описание:  Скачать
