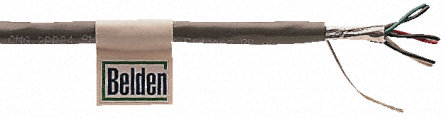

Кабель BELDEN 9501

Список производителей

Публикации

Belden

Number Of Pairs 1
Core Colours Black and Red (Number 1)
Shielded Yes
Outer Sheath Material PVC
Cable O/D (mm) 4.0
Outer Sheath Properties Non corrosive
Shielding Material Beldfoil Aluminium-Polyester
Conductor Insulation Material PVC
Conductor Material Tinned Copper
Drain Wire Yes
Impedance 75Ω
Individual Shield No
Number Of Conductor Strands 7
Reel Length (m) 304 m
Sheath Colour Chrome-Grey
Size Of Conductor Strands 1 pair 24awg PVCawg
Velocity Of Propagation % 60
Voltage Rating 300V

Overview
General Purpose 24awg Multi-pair Cable
Cables primarily intended for computers but also for instrumentation applications
24awg (7x32) stranded tinned copper wire conductors
PVC insulation and laid up in twisted pairs
Overall Beldfoil® screen providing 100% screening
Tinned copper drain wire is provided for termination of the screen
Chrome-grey PVC or LSNH overall sheath available
NH = Halogen free, low smoke, flame resistant, non corrosive
Standards
UL2464; NEC CMG (95xx) IEC 332-3C (95xx NH)

Информация

Производитель: Belden

Артикул производителя: 9501.00U305
