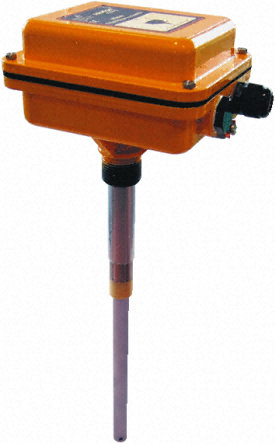

CLS Series, RF Capacitance Level Probe

* For use with solids and liquids
Powershield probe compensates for product build-up
Automatic or manual (with product) set up
ATEX approved for dust or hazard use
Membrane keypad for calibration purposes
Adjustable time delay

Output 1 x SPDT alarm relay, 2.5A at 250Vac
Mounting G1in. BSPP (top or side mounting)
Insert length 334mm
Housing material Glass filled nylon, paint coated
Process connection material Glass filled nylon
Probe material 304 stainless steel with polypropylene powershield
Supply Voltage 104 Vac to 245 Vac 50/60Hz or 21.6 to 25.2 Vdc selectable
Operating temperature -20°C to +70°C
Max. operating pressure 7 bar
Response time Adjustable: 1 to 128 s
Conduit connection 2 x M20
Rating IP65
Weight Approx. 2.3kg with standard rod
Applications Powders and granules Ø Информация

Производитель: MOBREY

Артикул производителя: CLSKB141A
