IP Rating IP66
Operating Temperature Range 150°C (max.)
Output Type Switch
Thread Type 51mm Tri-Clover
Probe Length 50mm

Overview

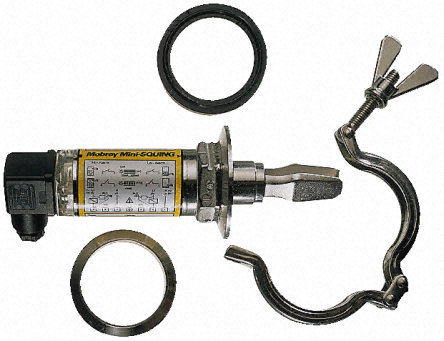

Mini Squing, Vibration Level Control Probe - Hygienic
Suitable for use where hygiene is important e.g. in food industries
Tuning fork (50mm stainless steel) style point level switch
Install in any position: high or low level
20 to 500mA (Switched Load Two-wire Output)
LED 'heartbeat' indicates correct functioning
LED indicates the state of the wet side: One flash per second when off, Constant illumination when on
Reverse polarity/short circuit protection
Ingress protection to IP66
Magnetic test point for manual functional testing
Hygienic fitting Tri-Clover mounting flange
Hand polished wetside and surface finish (Ra) better than 32µm
51mm Tri-clover clamp available separately, (see accessories)
Technical Specification
Operating pressure 30 bar @ 150°C
Operating temperature -40°C min, +150°C max
Ambient temperature -40°C to +80°C (derated to 50°C at 150°C wetside)
Time delay/respone (water) 1 sec wet-dry/dry-wet
Switch point 13mm from tip in water (vertical) / from edge (horizontal) of fork
Switching delay 1 sec dry to wet / wet to dry
Switching hysteresis 2mm
Specific gravity (SG) range 0.6 to 2.0
Liquid Viscosity 0.2 to 10000cps
Wetside Material (Fork) 316L stainless steel
Body material 304 stainless steel with polyester label
Dryside body material Glass filled nylon PA66 with Polyamide
LED window
Electrical connection Plug and PG9 gland provided

Operating pressure 30 bar @ 150°C
Operating temperature -40°C min, +150°C max
Ambient temperature -40°C to +80°C (derated to 50°C at 150°C wetside)
Time delay/respone (water) 1 sec wet-dry/dry-wet
Switch point 13mm from tip in water (vertical) / from edge (horizontal) of fork
Switching delay 1 sec dry to wet / wet to dry
Switching hysteresis 2mm
Specific gravity (SG) range 0.6 to 2.0
Liquid Viscosity 0.2 to 10000cps
Wetside Material (Fork) 316L stainless steel
Body material 304 stainless steel with polyester label
Dryside body material Glass filled nylon PA66 with Polyamide
LED window
Electrical connection Plug and PG9 gland provided

Информация

Производитель: Mobrey

Артикул производителя: VT07
