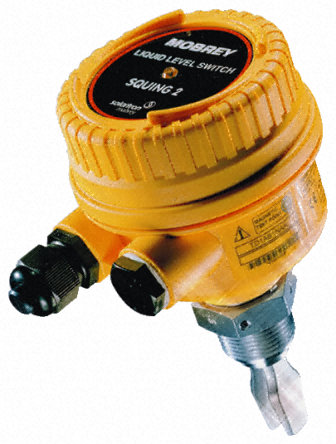

Squing 2’ Liquid Level Switch

The "Squing 2" is available in two versions. A direct switch output verison which can be connected in series with the load using standard 2 core cable to achieve switching, or a powered version with SPCO volt free relay output.
Operating voltage (Vac) 20-264
Operating voltage (Vdc) 24-60
Thread type 1in. BSPT
Operating Pressure 100 bar (-40 to +50°C), 80 bar (150°C)
Max. operating temperature +150°C wetside
Min. operating temperature -40°C wetside/dryside
Max. ambient temperature +80°C (at +60°C wetside)
Time Delay 0.3, 1, 3, 10 or 30 secs dry to wet/wet to dry
Switch point 13mm in water
Switching hysteresis ±1mm nom.
Specific gravity (SG) range 0.6 to 2.0
Liquid viscosity range 0.2 to 10000cps
Wetside material (fork) 316L stainless steel
Dryside material (housing) Glass filled nylon PA66
Electrical Connection M20 x 2 (gland supplied)

Информация

Производитель: MOBREY

Артикул производителя: TD1AS1NAB
