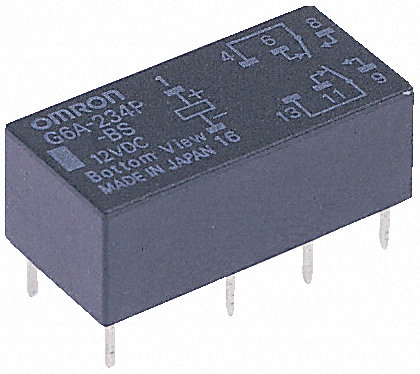

Реле OMRON, G6A-234P-BS 12DC
Contact Configuration DPDT
Coil Voltage 12Vdc
Current Rating Max. 2 A
Maximum Voltage Rating 250 Vac; 220 Vdc
Power Rating Max. 60W / 125VA
Coil Resistance info 514 Ω
Coil Power info 280 mW
Contact Resistance 50mΩ
Contact Material AgPd + Au Clad
Life 1 x 108
Operating Temperature -40 → +70°C
Mounting Through Hole
Relay Construction Non-Latching
Isolation Coil To Contact 2000Vac
G6A BS Series

* 2.5mm creepage / clearance distances
Fully sealed construction
Ag clad Au-Pd contacts in a bifurcated crossbar construction ensure reliable switching to loads as low as 10μA, 10mVdc
Contact configuration: DPDT
Expected life cycle 1 x 108
Operating temperature range - 40 to +70°C

Approvals
BABT No CR/0098

Информация

Производитель: Omron

Артикул производителя: G6A-234P-BS 12DC
