Источник питания BLOCK, GLC230 24-5
Input Voltage 230 (±10%)Vac
Output Voltage 24V(dc)
Output Current 5.0A
Output Power (Max) 110W
Ripple & Noise (P-P Max) ≤5%
Line Regulation +6/-10%
Height x Width x Depth 102x125x175mm
Load Regulation 25%
Operating Temperature 0 → +60°C
Weight 3.45kg

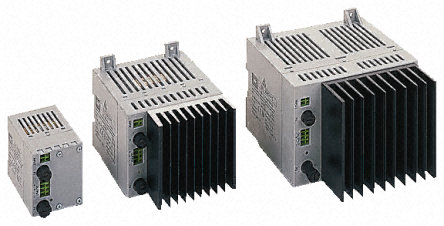

22 to 220W Linear, Unregulated GLC Series
230Vac input 24Vdc (nom) output safety isolating transformer to VDE0551, EN60742
4kV input/output flash tested
Finger safe easy accessible screw terminals
Double screw terminals on the output
Input and output fuse protection
LED output voltage indicator
Parallelable (with same type)
Electrolytic capacitor in the output circuit
Efficiency 80% typical

Информация

Производитель: Block

Артикул производителя: GLC 230/24-5
