Input Voltage 90 → 264Vac
Output Voltage 12Vdc
Output Current 10.8A
Power Rating 130W
Package Desk Top
Type Switch Mode
Dimensions 196x88x50mm
Efficiency 85 %
MTBF >100,000 hrs
Load Regulation 5%
Ripple And Noise 120mV
Line Regulation 3%
Operating Temperature 0 → +70°C
Weight 960g
Number of Outputs 1
3-Pin, 80 to 130W

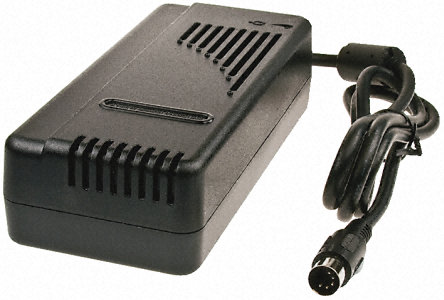

* External switch mode power supplies
IEC 320 (3 pin) input socket for worldwide applications
Supplied with 2m (approx.) lead terminated with 5-pin DIN connector
Fully regulated output
Input/output isolation 3kV
FCC-B and CISPR-B emission compliance
Input surge current, overload and short circuit protection
Moulded plastic enclosure to UL94V- O rating
Power on LED indicator
100% testing and burn in
Approvals
TUV, UL listed
R3979808

Информация

Производитель: Mascot

Артикул производителя: 5186000040
