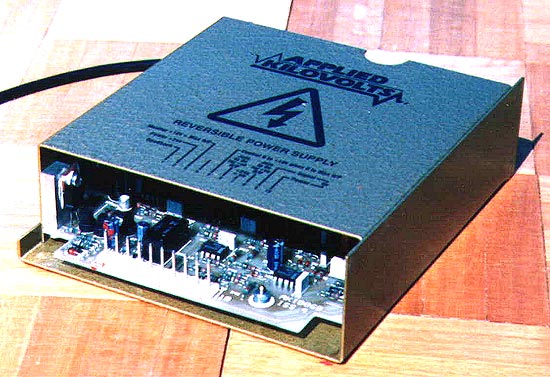

ES008RCP150 BI-POLAR ELECTROSPRAY 8 kV MODULES Applications: Electrospray APCI Deflector plates This power supply provides up to ±8kV for electrospray & APCI applications. Output polarity can be remotely changed by control pin voltages. As the unit does not use high voltage relays the polarity can be repeatedly changed at high speed without reducing the life of the unit. The power supply can be operated under current control in electrospray & APCI applications in mass spectrometers. Please consult the factory for special variants of this supply including higher speed versions, for volume applications. Electrical Specification Input voltage: +24V d.c. ±0.5V at 0.7A & -15V d.c. ±0.5V at 0.02A. Output Voltage: ±5kV limited to 500uA in Voltage Mode, ±8kV at 35uA in Current mode. Control: Vctrl Mode : 0 to +10V gives 0 to ±5 kV limited to 500uA Ictrl Mode : 0 to +10V gives 0 to ±35uA sourced from ±8 kV. Voltage Monitor: 0 to ±10V represents 0 to ±5kV, ±5%. Source resistance 400k ohm. Polarity: Reversible selection is by grounding of appropriate control lines. (Current less than 25 mA.) Line regulation: Информация

Производитель: APPLIED KILOVOLTS (UK)

Артикул производителя: ES8
