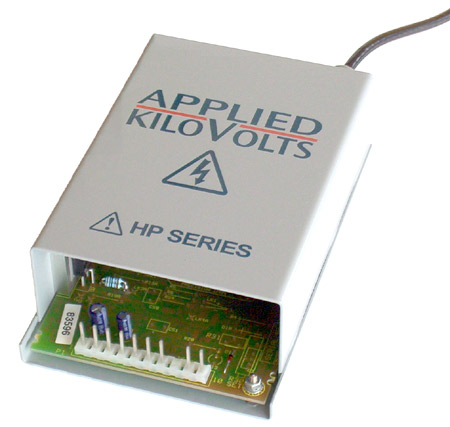

HP0.5, HP001, HP2.5, HP005, HP010, HP015, HP020, HP030

Precision High Voltage Modules

Applications:

- Photomultiplier tubes
- Mass spectrometers
- Electron microscopes
- Nuclear instruments
- Microchannel plates

0.5kV, 1kV, 2.5kV, 5kV, 10kV, 15kV, 20kV & 30kV
High Stability, Low Ripple
High frequency FET oscillator
Externally programmable or Internal control (option)
Short circuit and flashover proof
24 hour burn in
Low radiated magnetic field
Positive, negative & remote reversible versions

This range of precision high voltage modules has outputs that provide a low ripple, high stability source of high voltage for photomultiplier tubes, electron gun, nuclear and other applications. Control of the output voltage is by internal potentiometer or by an external 10 volt analogue control voltage. The units are pin compatible with the medium stability KS and 100 watt HW ranges.

All units are short circuit proof and use proven linear regulator techniques to drive a high frequency FET oscillator and ferrite high voltage step-up transformer. The power supplies are constructed from conservatively rated components with the reliability further enhanced by information gained over many years of field operation.

Positive, negative, and electrically reversible outputs are available at voltages from 1kV to 30kV. The reversible HPR version has a latched output and can only be changed when the output is set to zero. Please see the HPZ range for zero crossing reversible (bi-polar) units.

We manufacture a large number of special versions of these units and would be pleased to discuss your application with you.

Информация

Производитель: APPLIED KILOVOLTS (UK)

Артикул производителя: HP
