Keypad Layout 12 Key Calculator Format
Mechanical Life Per Key 4 x 106 Ops
IP Rating IP65
Case Material Super High Impact Polymer
Illuminated No
Actuator Material Chromed Die Cast Zinc
Actuator Colour Silver
Case Colour Black
Operating Temperature Range -40 → +100°C
Contact Material Gold
Depth Behind Panel 8mm

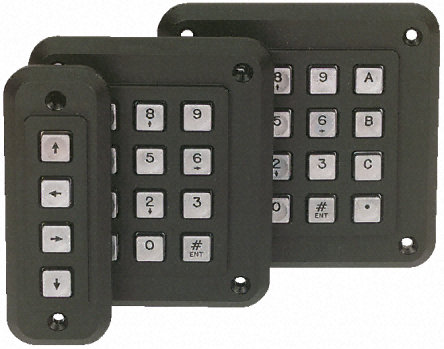

1000 PLX Series

* Reducing cost and weight of vandal resistant keypads, the PLX range uses a revolutionary super high impact polymer case for resistance to abuse and attack. Ideal for applications that require toughness and resistance to water and dust. Chromed die cast zinc keys are retained to provide keytop graphics with unsurpassable toughness and wear resistance.
4, 12 and 16 key formats
Telephone and calculator keytop graphics
IP65 rated against water and dust
High level resistance to impact and operator abuse
Contact configuration: 50mA @ 24Vdc
Contact resistance: 100Ω
Dielectric strength: 500Vac
Insulation resistance: 50MΩ
Long and reliable operational life >4 million cycles per key
Compatible with the Universal Encoder
Suitable for use with 1000 series back box & privacy shroud
-25°C (dry) to +85°C operational
Operating Force: 180g. Contact Bounce; 5ms

Информация

Производитель: Storm

Артикул производителя: PLX12T202
