Keypad Layout 12 Key Calculator Format
Mechanical Life Per Key 4 x 106 Ops.
IP Rating IP67
Case Material Chromed Zinc
Actuator Material Chromed Zinc
Actuator Colour Silver
Case Colour Silver
Operating Temperature Range -40 - +100°C
Contact Material Carbon/Gold
Depth Behind Panel 8mm
1000 Series

* For Public / Outdoor Environments
Vandal resistant
Metal casing and keytops (chromed zinc)
Fully sealed to IP67, for use in exposed outdoor applications
Engraved keytop characters
Gold on nickel plated FR4 contact PCB

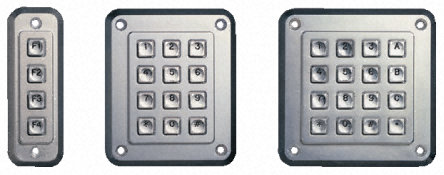

4, 12 and 16 key formats
Contact rating: 50mA @ 24Vdc
Contact resistance: 100Ω
Dielectric strength: 500Vac
Insulation resistance: 50MΩ
Operational life >4 million cycles per key
-40°C (dry) to +100°C operational
Back box and privacy shroud available
Operating Force: 180g. Contact Bounce; 5ms

Информация

Производитель: Storm

Артикул производителя: 1K120102
