Измеритель мощности Hioki 3333

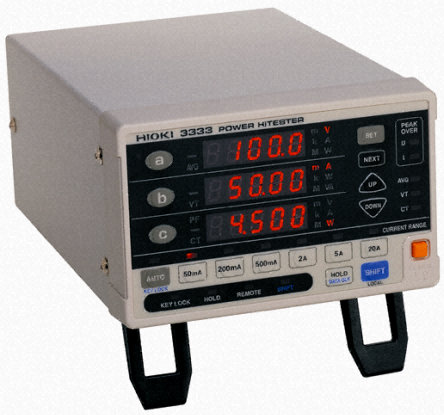

Hioki 3333 Power HiTESTER Single Phase AC Power Meter
The Hioki 3333 POWER HiTESTER is designed for assessing the power consumption of single phase ac electrical products in line with the 2005/32/EC Directive on the Eco-design Requirements for Energy-using Products
Rear screw terminal block ensures a secure safe connection for the unit under test.
Six selectable current ranges from 50mA up to 20A.
AC- true RMS measurement
Selectable VT & CT ratio setting for transformer imeasurements to expand the measurement display upto 92MW
Triple LED display with user selectable combinations of 3 measurement variables
Selectable Averaging mode to minimize display fluctuations
RS232C interface for PC measurement and data management
Measurement parameters Voltage, current, active power, apparent power, power factor
Display combinations • Voltage, Current & Active Power
• Current, Active Power & Apparent Power
• Active Power, Power Factor, Voltage or Current
Voltage measurement 20.0 V to 300.0 V
Current measurement 5.00 mA to 30.00 A
Accuracy 45 → 66 Hz ± 0.2% rdg typical
Active Power / Apparent Power 1.000 W → 6.000 kW / 1.000 VA → 6.000 kVA
Frequency Bandwidth 45Hz → 5 kHz
VT Ratio Setting 1(Off), 2, 4, 10, 20, 30, 60, 100
CT Ratio Settings 1(Off), 2, 3, 4, 6, 8, 10, 12, 15, 16, 20, 24, 25, 30, 40, 50, 60, 75, 80, 100
RS-232 C Interface Full duplex : 9600 Baud
Analogue Output
(rear panel screw terminals) 3 parameter outputs: voltage, current & Active power +2 VDC fs for each channel
Dimensions & weight 251 x 115 x 160 mm : 1.9 kg
Supplied with
UK & Schuko mains lead, user manual

Информация

Производитель: Hioki

Артикул производителя: Hioki 3333
