Тестер MEGGER, DET3TC
DET3TC 3 Pole Earth Tester
3 pole earth tester for measuring the resistance of earth rods and associated installations.,An ICLAMP selective earth clamp is available separately, and when used with the DET3TC allows the testing of an earth rod without the need for disconnection from the system.
Resistance range 0.01 to 2000 ohms auto ranging
Choice of 2 or 3 terminal measurements
Simple one button operation
Superior noise rejection to 40V pk-pk
Measures earth voltage 0 – 300V
Automatic P spike & C spike check
Clamp input for no-disconnect testing (requires ICLAMP)
Earth current range (with ICLAMP up to 19.9A)
Resistance range: 0.01 to 2000 ohms
Accuracy: ±(2% rdg +3 digits)
Ingress protection: IP54
Display: LCD
Operating temperature -20 → +50 °C
Size (HxWxD) 148 x 203 x 78mm
Weight 990g
Standards
EN61010-1 CAT IV 150V & CAT III 300V
Supplied with

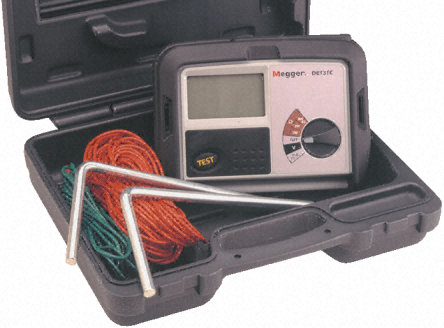

2 earth test stakes, 3 connection leads, 8 x AA alkaline batteries, hard carry case, quick start guides, user guide on CD

Информация

Производитель: Megger

Артикул производителя: DET3TC
